When I first began collecting mechanical pencils I tried to limit my acquisitions to items that matched those keywords – “mechanical pencil”. However, items that didn’t quite fit that definition gradually began creeping into the collection. Sometimes sellers would list the items as “pencils” and once received I’d discover them to be more than they first appeared. At other times there would be something about the images of the item that provided a clue (e.g. a patent date, or a missing slider where one would normally be, or two sliders when only one should be present). And on far too many other occasions, the item would just be too cool to pass up.
And now? Well, now I just accept the risks associated with seeking out interesting examples from the victorian pencil world, and I continue to be pleasantly surprised when the next “not-just-another-pencil” shows up in the mail.
Of course, playing pencil roulette doesn’t always turn out to be a win, but like most gambling addicts I prefer to maintain my focus on the positive aspects and excitement of the ones that are wins, while quietly disposing of the detritus resulting from the losses!
Here are a few of the more interesting “wins” that have come my way …

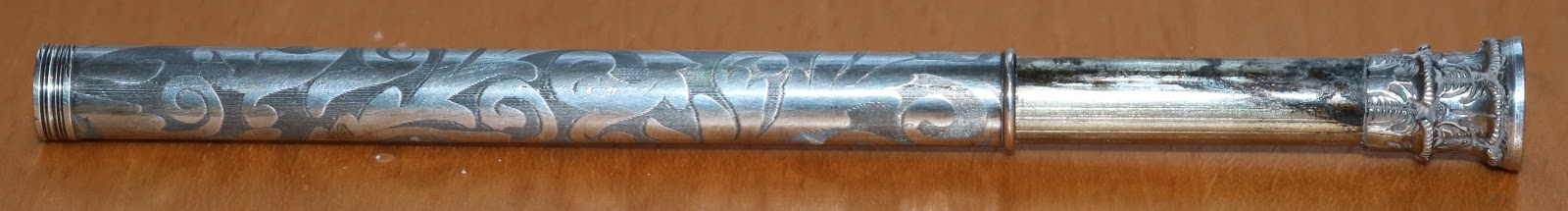

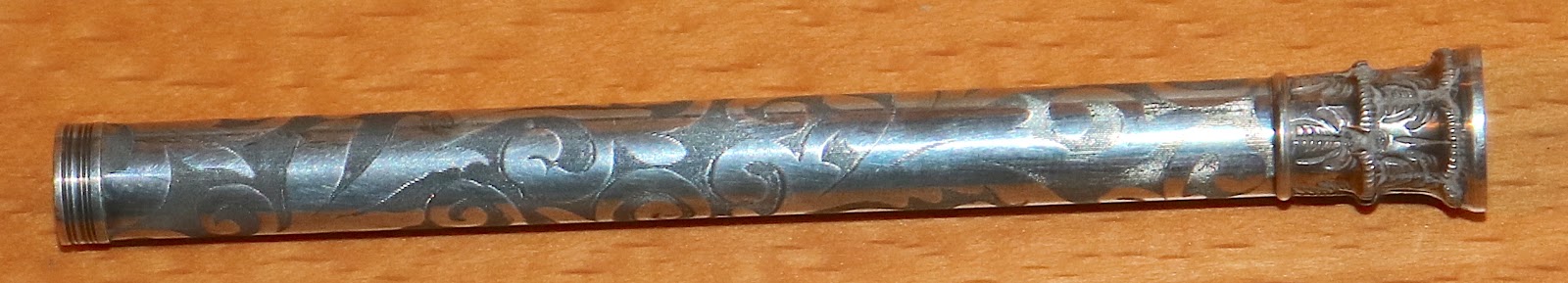

Jacob Lownds Pencil (1836) – This beauty was rather sad looking when I first saw it posted for sale many years ago. It was listed on an auction site as ‘not working”. It was almost black with dirt, it appeared to be missing its slider, and the seller indicated that the pencil was “stuck”. But it was also listed at a ridiculously low price and something about it said “take a chance” so I did. It cleaned up nicely and works just fine. There never was a slider because the design never required one. There is no maker’s mark on it, however, there was only one maker that I’ve come across that was using this design in the 1830’s. Jacob Lownds filed his patent, (U.S. patent #32) in 1836. The pencil tip extends by pulling the top of the barrel, giving it a quarter turn, and then pushing it forward. Reverse the process to bring the tip back into the barrel. The etched design on the barrel only became clearly visible once I did a little cleaning. It is 3.5″ (9cm) closed, and 4.75″ (12cm) when extended.

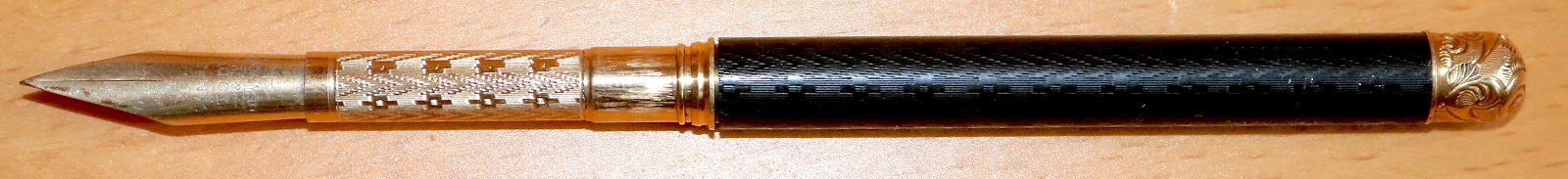

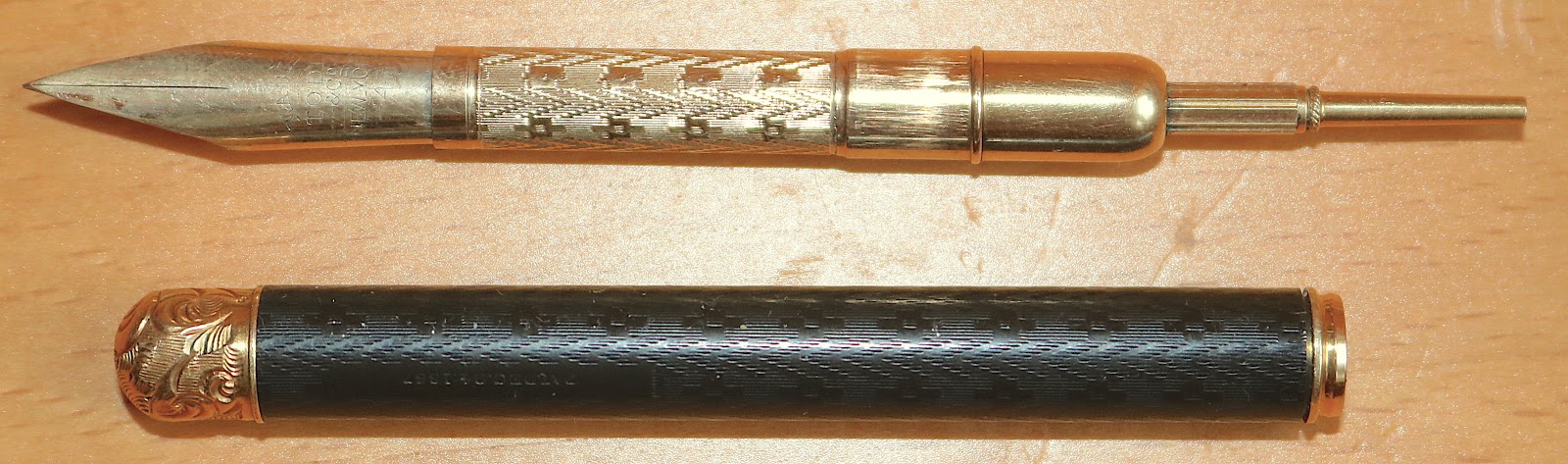

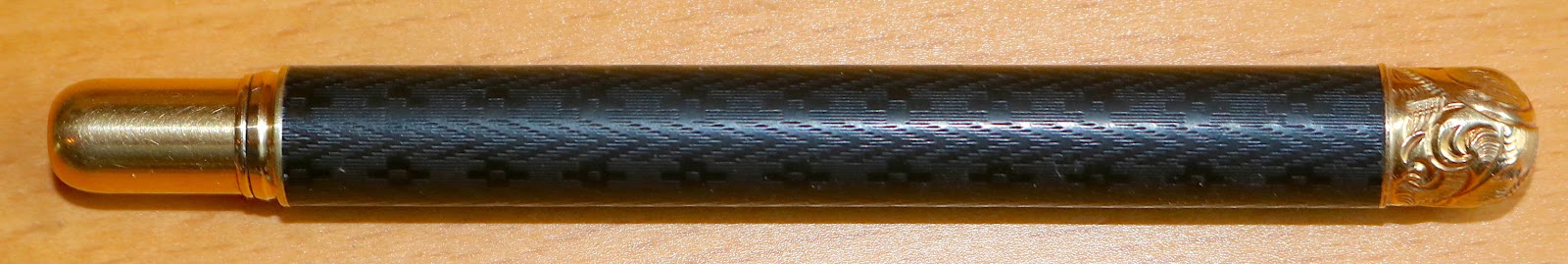

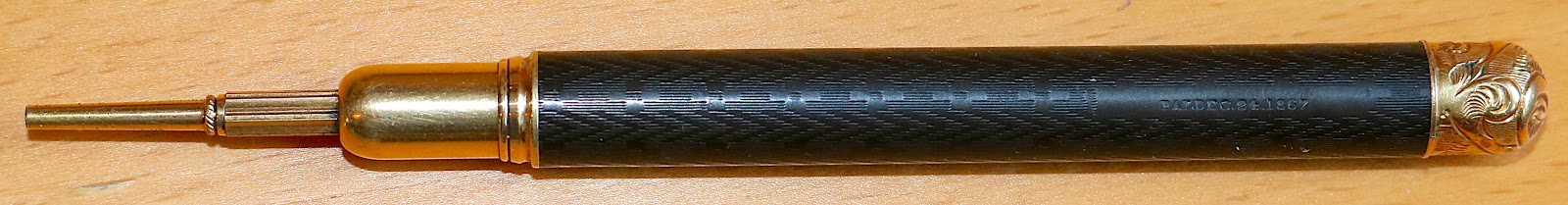

W.S. Hicks Combo Pencil & Dip Pen (1867) – I’ve acquired two of these over the years and both were originally listed for sale as pencils. I had owned the first one for years, and at some point I had looked more closely at the patent details associated with the date on the barrel, “Pat.Dec.24.1867”, and determined that I had something more than just a nice Hicks pencil. So when a second one came along, also listed as a pencil… I just had to buy it as well.
A gentleman by the name of Richard Ryne had filed U.S. patent #72,684 on that date and he assigned the patent to W.S. Hicks. There is a second cartouche on the barrel, on which I can make out a very faint “…0 ’58”. This corresponds to A.G. Days standard patent imprint “AG Days Pat Aug 10 ’58”. Days marketed an “improved” version of the Goodyear BHR.
This one has what appears to be a never inked solid gold Mabie Todd #4 pen nib (the second Hicks BHR combo is slightly smaller in diameter and has a #3 Mabie Todd nib). This one is 3.75″ (9.5cm) closed, and 4.75″ (12cm) when the pencil is extended.

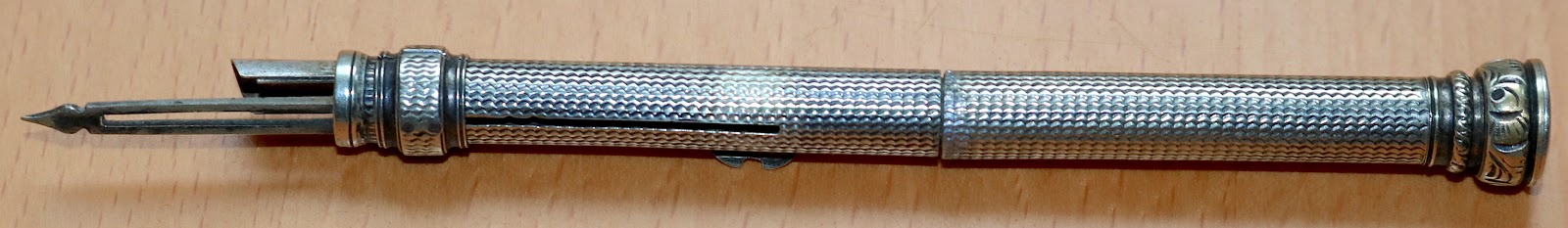

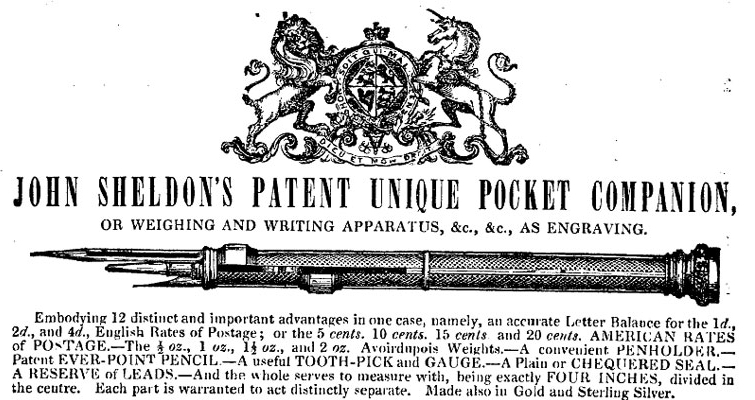

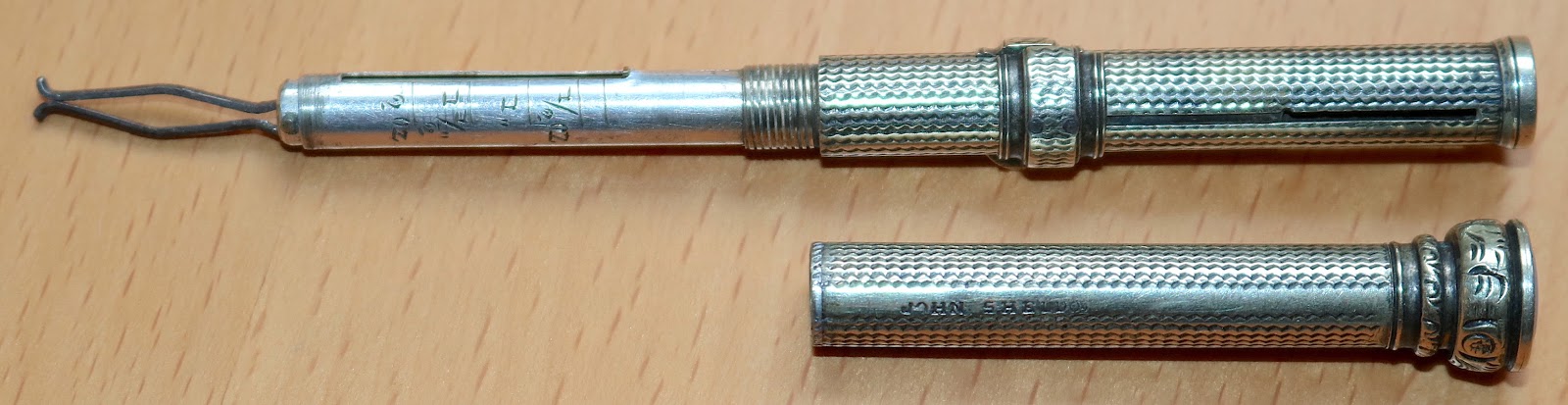

John Sheldon – “Unique Pocket Companion” (c.1842) – This was one of the first “more than just a pencil” purchases that I made many years ago and it is by far my best pot luck win, thanks mostly to my own curiousity as a novice collector. The seller had listed it as a silver victorian pencil/pen combo, engraved with the owner’s name. I normally stay away from engraved items but this one was listed as silver, seemed to be in good condition, and I liked the look of the “split” slider for extending the pen/pencil, which I hadn’t seen before. When it arrived I realized that what the seller had indicated was an engraved owner’s name was actually an imprint of the maker’s name – John Sheldon, and that what I had just purchased was an example of John Sheldon’s “Unique Pocket Companion”, made in Birmingham, U.K., and marketed in the 1840’s as a complete “Magnum in Parvo” (“Much in a Small Space”).
In total, the Sheldon includes an amazing 8 functions – pen, pencil, toothpick, sovereign gauge, letter balance (to determine postage due), seal, lead reservoir, and simple measurer (barrel is 4″ long and it is divided exactly in the middle). Oh, and the seller had the item’s casing material wrong as well – it wasn’t silver; Sheldon made most of his pocket companion’s in what is known as German silver, or nickel silver (copper, nickel, zinc), and it has no silver in it at all. This allowed Sheldon to produce complex writing tools and sell them at affordable prices. In addition, being harder than silver, the material ensured that the tool would hold up well under regular use. A rare find, although I have been able to acquire one other Sheldon more recently.
